Understanding the JVM Architecture

on



Introduction

The Java Virtual Machine (JVM) is a critical component of the Java programming environment, providing a runtime platform for Java applications. Understanding the workings of the JVM is essential for Java developers, especially during interviews. This blog will detail the architecture of the JVM, breaking down its components and their interactions.

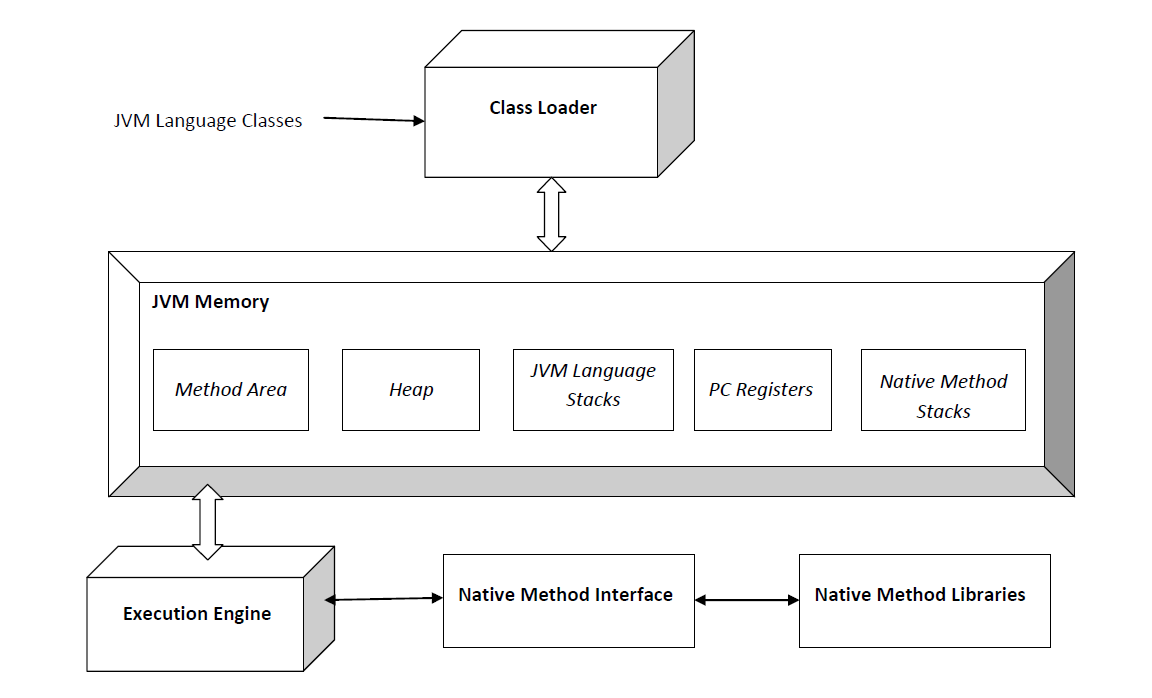

source: Wikipedia

High-Level Overview

The JVM’s primary function is to load, verify, and execute Java bytecode. It operates in the following steps:

  1. Loading the Class File: The JVM loads the .class files generated by the Java compiler.
  2. Linking: This phase involves verification, preparation, and resolution.
  3. Initialization: Static variables are initialized, and static blocks are executed.
  4. Execution: The bytecode is executed by the execution engine.

Detailed Breakdown

1. Class Loader Subsystem

The Class Loader Subsystem is responsible for loading class files into memory. It has three main phases: Load, Link, and Initialize.

Load Phase

The load phase involves reading the .class file and converting it into a data structure in memory. The class loader can load classes from various sources:

  • File System: From a .class file.
  • JAR Files: Compressed archives containing .class files.
  • Network: Classes can also be loaded over the network.

There are three primary class loaders:

  • Bootstrap Class Loader: Loads core Java classes located in the rt.jar.
  • Extension Class Loader: Loads classes from the extension directories.
  • Application Class Loader: Loads classes from the classpath.

Link Phase

The link phase prepares the class for execution, consisting of three sub-phases:

  • Verification: Ensures the bytecode conforms to JVM specifications and is safe to execute.
  • Preparation: Allocates memory for class variables and initializes them with default values.
  • Resolution: Converts symbolic references into direct references.

Initialization Phase

During this phase, static initializers and static block code are executed. This is where the actual values for static variables are set.

2. Runtime Data Areas

The JVM organizes memory into several runtime data areas:

Method Area

  • Description: Stores class data, including static variables, method data, and the runtime constant pool.
  • PermGen Space/Metaspace: Prior to Java 8, the method area was known as the Permanent Generation (PermGen). In Java 8 and later, it is replaced by Metaspace, which resides in native memory.

Heap

  • Description: The heap is where all object instances and array elements are allocated. It is shared among all threads.
  • Tuning: The heap size can be adjusted using -Xms (initial size) and -Xmx (maximum size) JVM options.

Stack

  • Description: Each thread has its own Java stack, which stores frames. Each frame contains local variables, operand stack, and method data.
  • Stack Frame: Created each time a method is invoked, storing parameters, local variables, and intermediate computation data.

Program Counter (PC) Register

  • Description: Each thread has its own PC register, which points to the current instruction being executed.

Native Method Stack

  • Description: Stores native method information used by Java applications calling non-Java libraries.

3. Execution Engine

The execution engine executes the bytecode and consists of the following components:

Interpreter

  • Function: Interprets and executes bytecode instructions one by one.
  • Drawback: Slower due to repeated interpretation of frequently executed code.

Just-In-Time (JIT) Compiler

  • Function: Compiles bytecode into native machine code at runtime, improving performance by eliminating the need for repeated interpretation.
  • HotSpot Profiler: Identifies frequently executed code segments (hot spots) and compiles them to native code.

Garbage Collector

  • Function: Automatically reclaims memory by removing objects that are no longer referenced. It is crucial for managing the heap and preventing memory leaks.
  • Types: Various algorithms like Serial, Parallel, CMS, and G1 are used for garbage collection.

4. Native Method Interface (NMI)

  • Function: Allows Java code to interact with native applications and libraries written in other languages like C or C++.

Conclusion

Understanding the JVM architecture provides a solid foundation for optimizing Java applications and debugging performance issues. The JVM’s ability to load, verify, and execute code efficiently, along with its robust memory management and garbage collection, makes it a powerful platform for developing and running Java applications. With this detailed breakdown, you should be well-prepared to discuss JVM internals confidently in any interview.

By grasping the JVM’s components and their interactions, you gain deeper insight into how Java applications are executed and managed, paving the way for more efficient and effective Java programming.
